Iconlift – Premium Enclosed Home Lift
The Iconlift is Area Lifting’s most elegant all-electric solution, designed for modern architecture and luxury home renovations. With a fully enclosed car and automatic sliding doors, the Iconlift offers a high-end user experience in a sleek, compact package. It’s ideal for premium residential and light commercial applications where safety, accessibility, and sophistication are priorities.
Key Features
- ⚙️ Fully electric screw-driven lift – no oil or hydraulics.
- 🚪 Automatic sliding doors with sensor-controlled operation.
- 🧱 Compatible with masonry shafts or self-supporting metal structures.
- 💡 Premium cabin design with full enclosure and lighting.
- 🔇 Silent ride thanks to precision drive technology.
- ✅ 5-year warranty when paired with IoT monitoring and routine service.
Technical Specifications
| Drive System | Screw-driven electric motor |
|---|---|
| Usage | Indoor |
| Maximum Travel | 13 meters / 5 Stops |
| Load Capacity | Up to 400 kg |
| Speed | 0.15 m/s |
| Car Dimensions | Min. 665x825 - Max. 1115x1425 / 1215x1225 |
| Pit Requirement | 50mm |
| Power Supply | Single Phase, 230V AC |
| Installation | Indoor - In masonry shaft or self-supporting metal structure |
| Compliance | D.M. 2006/42/CE – EN81.41:2010 |

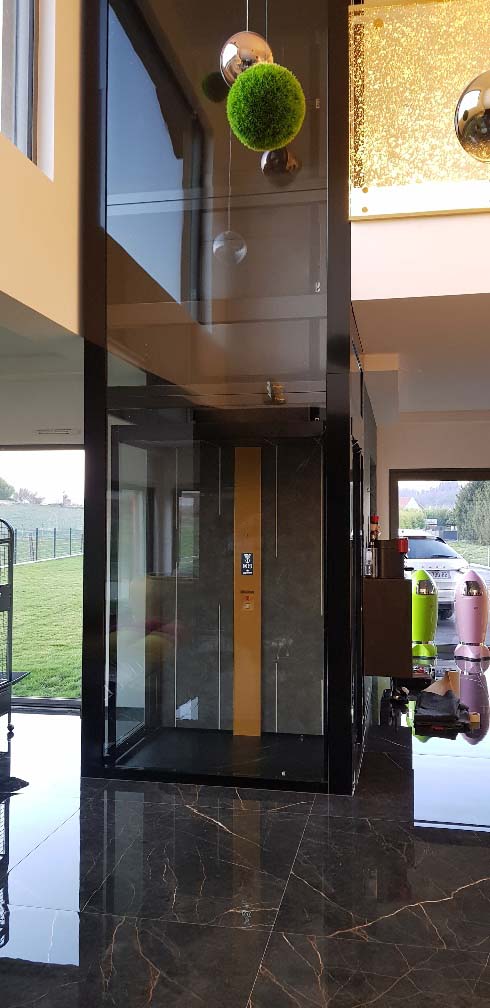

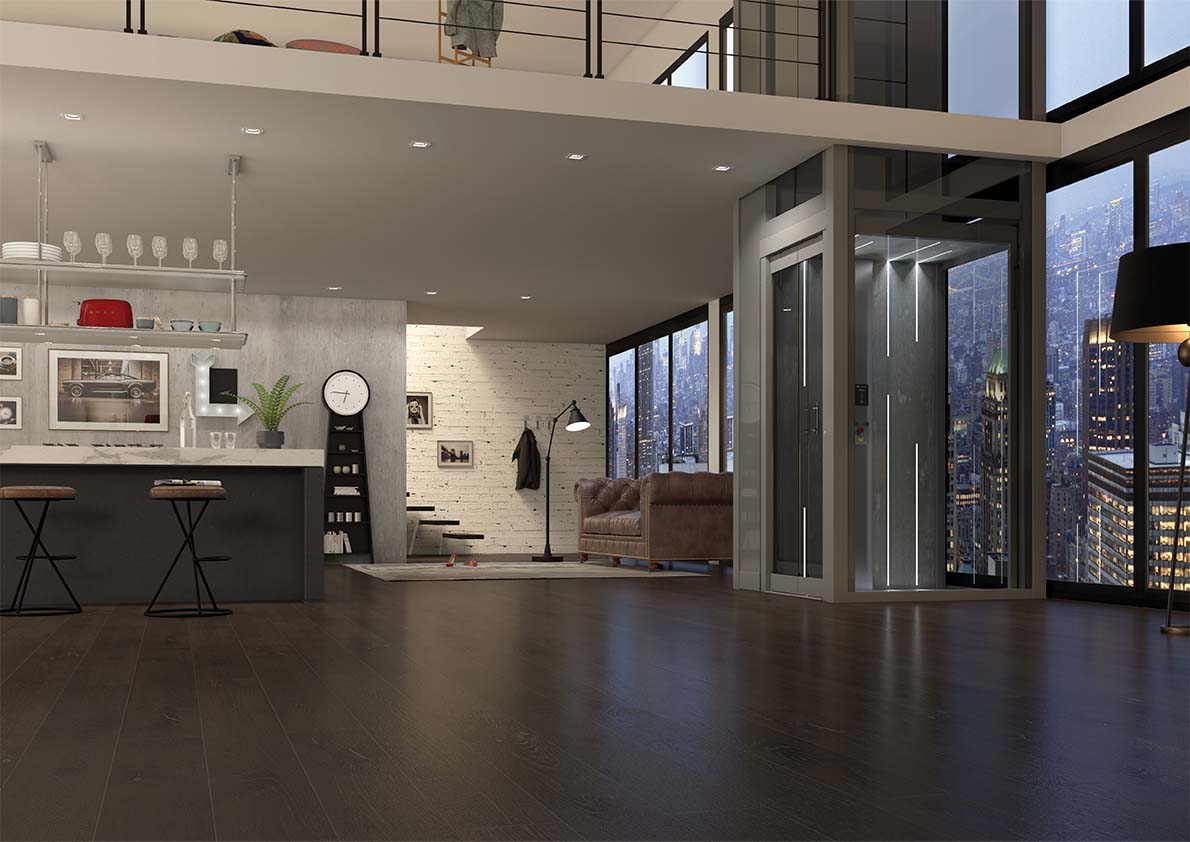

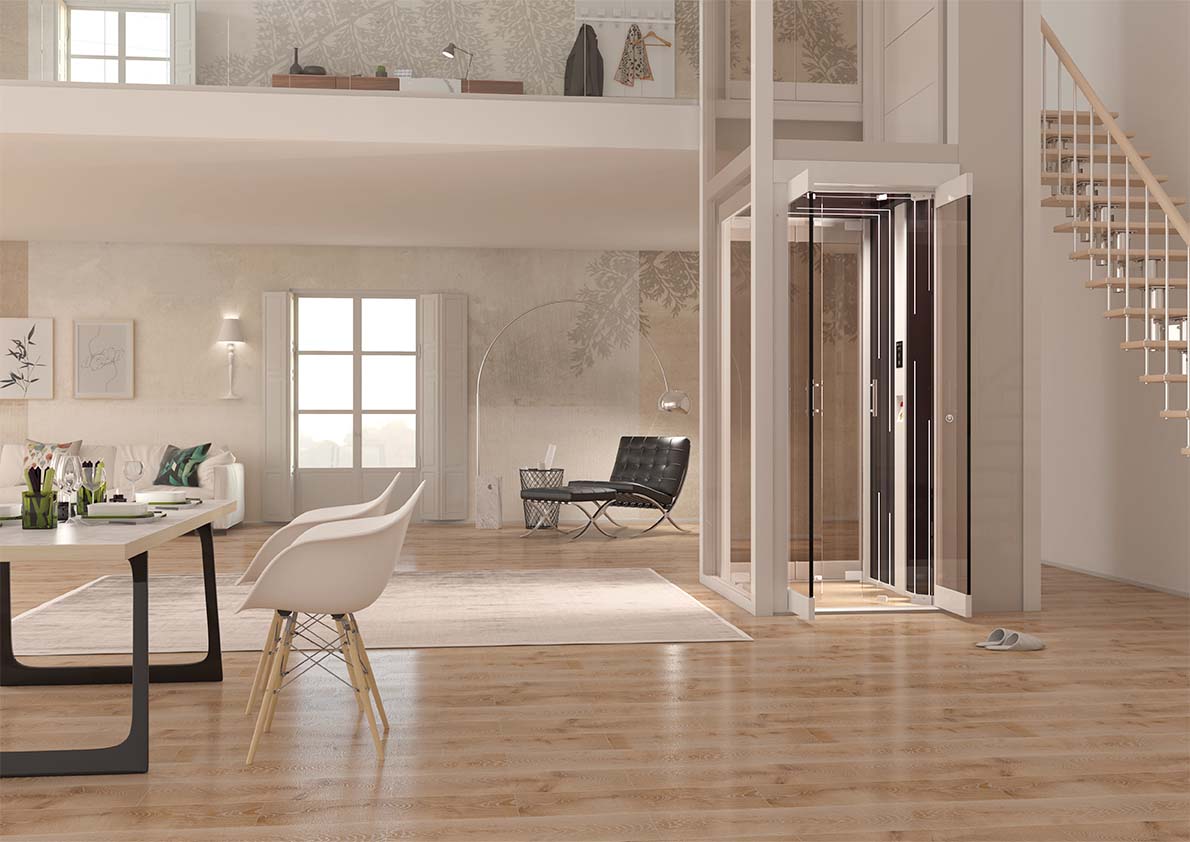

Image Gallery
